This is my solder practice board. It is not perfect. A few of them are better than others; some of them have too much of solder, I still need more practice to do a better job.
Safety always comes first!

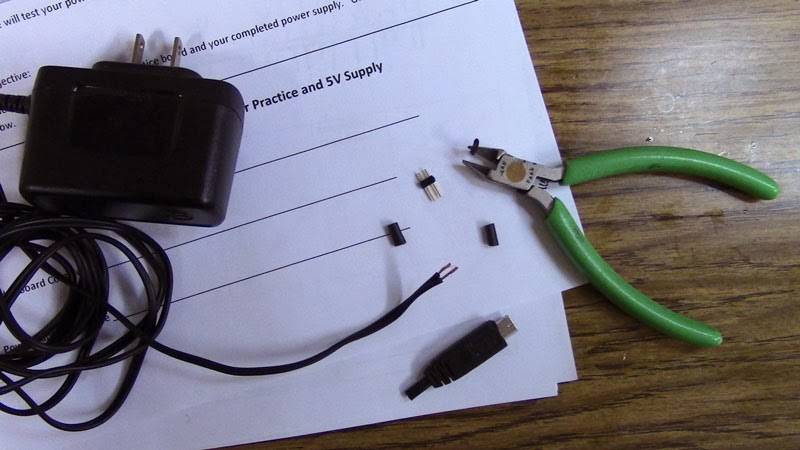

Before I chop off the little plug at the end of its wire. I make sure that the AC adapter is not plugged into the wall.
Here is my completed 5V power supply.
I used three Light Emitting Diodes (LEDs) and a 1kΩ resistor to test my power supply. It works. I learned that resistors work either way, it has no polarity. Unlike the resistor, if you place the LED in backwards it won't work because current in a diode flows only one way: it flows from the positive side to the negative side.
